Haseman R4D4 Z-Wave, DIN Rail, 4 RELAY and 4 UNIVERSAL DIMMER channels

Haseman R4D4 - Z-Wave, DIN Rail, 4 RELAY and 4 UNIVERSAL DIMMERS

Brand: HASEMAN ELECTRIC
Product Code: R4D4
Availability: 2

259.90 €
2 or more 249.90 €
4 or more 239.90 €

Qty

Z-Wave controlled 4 RELAY and 4 UNIVERSAL DIMMER channels.

Features:

4x500W dimmable outputs with user-configurable dimming mode – Leading or Trailing Edge (individual setting for each channel).

4x2kW Relay Outputs, capable to control AC or DC loads.

High quality, low R_DS MOSFET power transistors.

Opto-isolated relays.

Over-temperature protection.

User-configurable Power Up Memory function.

User-configurable button type - push button, toggle switch, or follower switch (individual setting for each channel).

User-configurable Soft Start (individual for each dimmer channel).

User-configurable MIN and MAX dimming levels (individual for each dimmer channel).

Power Supply range: 110-240VAC, 50Hz.

Maximum power ratings:

      Dimmer channels (CH. 1 to 4):
         - 500W/channel (at 25°C ambient temperature).
         - 400W/channel (at 35°C ambient temperature).
      Relay channels (CH. 5 to 8):
         - Max. AC output: 10A / 110-230V (resistive load).
         - Max. DC output: 12A / 12-30VDC.

16A rated PCB power tracks and terminals.

Front panel LED indication of active outputs.

ABS enclosure for standard DIN Rail mounting.

Durable tactile button on the front panel.

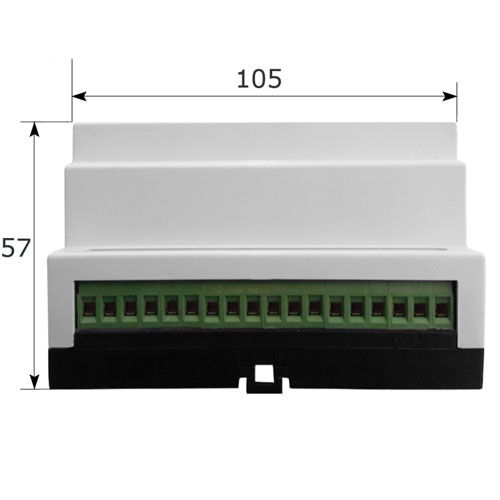

Dimensions: 105x86x57mm.

Conforms to EU regulations: EN55022, EN610006.

Radio protocol: Z-Wave Plus, GEN 5, 868.42MHz.

Antenna range: up to 50m outdoor / 30m indoor.
